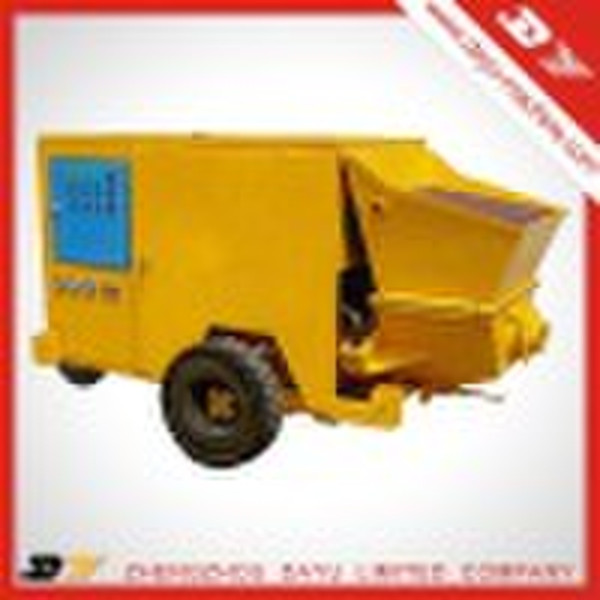

Wet-type Concrete Sparying Machine

Wet-type Concrete Sparying Machine Type& Suitful: Thickened Concrete Delivery&Shot QC:CE, ISO9001 ect. Power:Electrical Features Thick flow conveying method with hand-spraying make the concrete spraying is even, steady with less air consumption comparing to thin flow conveying method. DYPH-A-7Wis a high efficiency machine with a longer conveying distance, horizontal 200m and vertical 70m. Simple CE standard electrical system controls provide fool-proof operation Soft-start protects electric system and motor. Two independent oil pressure circuits. Main oil is supplied by a high-pressure, variable-flow, axial piston pump. A gear pump provides separate circuit for the dosing pump. Setting of the desired dosing values by hand-wheel Double piston pump with S-tube and change-over cylinders for a positive action. Self-sealing, superhard sealing ring and plate. Automatically reversing pistons relieve the conveying system when blocked. Tough hopper with vibrator and grill designed for work with steel fibres. Centrally positioned lubrication point for easy service. Low weight is an advantage for transport.Aplication used for the conveying and spraying of wet-mix concrete. Typical applications include permanent and temporary rock support in tunnels and mines, or in fact wherever sprayed concrete is to be applied. It can also for pumping, grouting, repair work, artificial soil seeding, mortar spraying, and refractory material spraying. Being a piston pump it provides much more versatility, in both mix types and potential conveying distances, than a rotor/stator pump of a similar capacity. Pumping of thick and stiff mixes also poses no problem, as the concrete is delivered up to 67 bar. Its compact design enables easy integration into any kind of carrier chassis. Technology description ParameterUnitValueOutputm 3/h7PressureMPa5Hopper capacityL170Loading Heightmm1050Suitable slumpcm6-18Max.grain size for sprayingmm15Pipe and hose sizemm65/50Horizontal converying distancem120Vertical converying distancem50Drop out%<8Electric motorkW15Air pressureMPa0.3Use air valuem3/min3Dimensionsmm2530×1300×1300Weightkg1100 Output7. m3/hConveying distanceHorizontal:150mVertical: 50mPressure5MPaSuitable slump6 18cmHopper capacity170litersElectric motor380V/50Hz, 18.5kWOil pressure of conveying system12MPaOil tank90litersOil cylinder IDID80mmWork cylinder diameterID110mmWork cylinder Stroke550mmS shape swing tube110mmPipe and hose sizeID65/51mmMax.grain size for spraying15mmMax.grain size for pumping1/3pipe IDDosing pump17.5-88L/h0.6 MPaPower380V/50Hz, 0.75kWWeight1200kg
